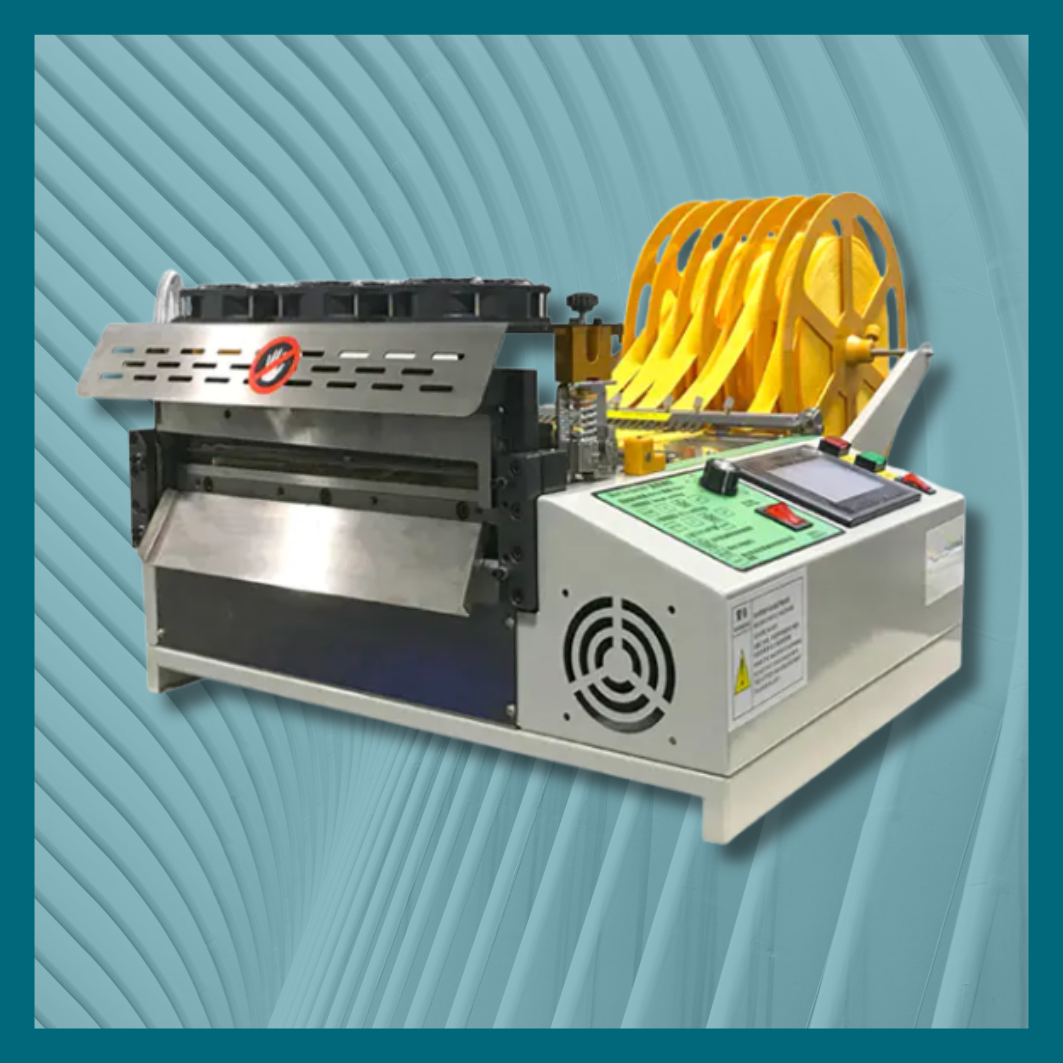

Hot & Cold Lanyard Cutting Machine – 300 mm by altrAsonix is a heavy-duty industrial cutting system designed for extra-wide tapes, lanyards, ribbons, and technical textiles. Equipped with automatic hot and cold blade technology, this machine delivers sealed edges, precise length control, and high-speed performance for large-scale production environments.
Built with a robust frame and advanced digital control system, it ensures consistent cutting accuracy, smooth feeding, and long operational life, making it ideal for premium manufacturers requiring wide-format tape processing.
Key Features
-
Large cutting width up to 300 mm
-
Fully automatic hot and cold alloy steel blade system
-
Industrial-grade temperature stabilization for consistent sealing
-
High-precision digital control interface
-
Adjustable cutting length from 1 mm to 99999 mm
-
Smooth and stable automatic feeding rollers
-
Designed for high-volume mass production
-
Heavy-duty vibration-resistant frame
-
Low maintenance and energy-efficient operation
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Hot & Cold Lanyard Cutting Machine – 300 mm |
| Maximum Cutting Width | 295 mm |
| Cutting Length Range | 1 mm – 99999 mm |
| Cutting Speed | Up to 50 cuts per minute |
| Cutting Accuracy | ±0.5 mm |
| Blade Type | Hot & Cold Alloy Steel |
| Temperature Control | Industrial Stabilized Heating System |
| Operation Mode | Automatic Roll Feeding |
| Power Consumption | 1100 Watt |
| Input Voltage | AC 220V |
| Machine Weight | 45 Kg |
Material Compatibility
This machine is suitable for cutting and sealing:
-
Woven lanyards
-
Polyester fabric tapes
-
Industrial lanyard materials
-
Wide ribbon rolls
-
Synthetic and thermoplastic textile strips
-
Technical reinforcement tapes
The hot blade function ensures sealed edges for synthetic materials, while the cold blade provides sharp mechanical cutting for specific applications.
Product Applications
-
Extra-wide lanyard production
-
Technical ribbon cutting
-
Branding and event fabric tape processing
-
Reinforcement textile strip cutting
-
Promotional strap manufacturing
-
Industrial textile component cutting
Suitable Industries
-
Premium lanyard manufacturing units
-
Technical textile industries
-
Large apparel factories
-
Branding and printing units
-
Industrial textile processing plants
Frequently Asked Questions (FAQ)
1. What is the maximum cutting width of this machine?
The machine supports material widths up to 295 mm.
2. Can it perform both hot and cold cutting?
Yes, it features a fully automatic hot and cold alloy steel blade system for sealed or sharp mechanical cuts.
3. What type of materials can be processed?
It can process woven lanyards, polyester tapes, wide ribbons, industrial textile strips, and other thermoplastic materials.
4. Is the machine suitable for mass production?
Yes, it is specifically designed for high-volume industrial production with speeds up to 50 cuts per minute.
5. How accurate is the cutting length?
The machine offers ±0.5 mm cutting accuracy with digital length control.
6. Does it require manual feeding?
No, it operates with an automatic roll feeding system for smooth and consistent material handling.
